@Kestrel – Hack Club Scrapbook

Sun, Sep 1

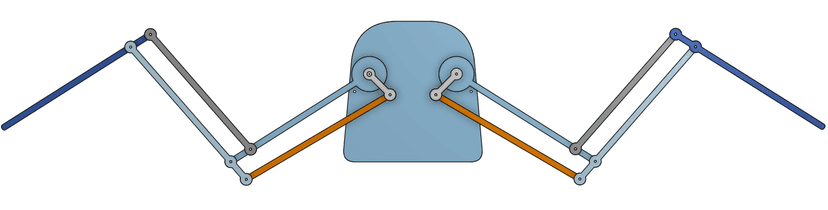

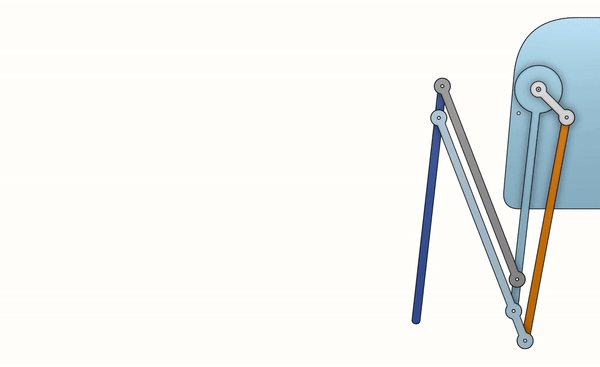

i got kind of interested in articulating wings for a bit and made a skeleton model in OnShape a while back! it uses four-bar linkages to extend and retract repo: github.com/commonkestrel/wings onshape: oside.onshape.com/documents/a5e3511cbfea638754ab1582/w/697e5910c73da591482e9cfe/e/56d1bc5f2598a4eb89e61993

https://scrapbook-into-the-redwoods.s3.amazonaws.com/508e8415-1c7c-419d-8f96-0a22e5893993-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/ad5faaa6-2f34-46de-957c-066f187ccf51-articulating-wings.gif

https://imgutil.s3.us-east-2.amazonaws.com/fe5379a1edd4addbfa17f5e26dcc6303b1bfc179cbe20da1466b468b490b190d/4c6c43b4-726e-4a46-847d-4f9cef944c16.png

Sun, Sep 1

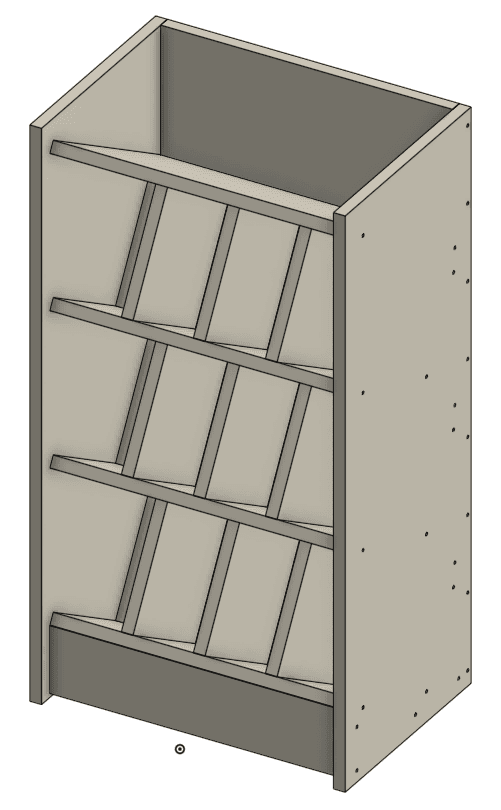

i made a battery charger shelf for my FRC team! it has slots for 9 batteries and 3 chargers, along with a little room on top for things like a battery beak OnShape: oside.onshape.com/documents/e903d7c16448b61df108dc46/w/b892b4191214b4988a3d7a2b/e/cd5c105823d7ccaa8abc47a1?aa=true

https://scrapbook-into-the-redwoods.s3.amazonaws.com/6aceba8a-9d29-40d4-9fbc-b3e21465448a-image.png

Thu, Aug 29

i'm super excited to finally get my crossplatform FRC driver station - WindUp - working! NI is very secretive about their protocols, so i've spent hours just staring at WireShark trying to figure out what's going on. i've mostly worked making a crate - driverstation - that WindUp uses under the hood to communicate with the RoboRIO. currently it can get battery voltage and other statistics from the RIO, change the alliance station, mode, and enable the robot. i still need to figure out how to transmit joysticks and recieve stdout messages. WindUp repo: github.com/commonkestrel/windup driverstation repo: github.com/commonkestrel/driverstation

https://scrapbook-into-the-redwoods.s3.amazonaws.com/74da3255-b6a0-4888-bd5d-89e2672a45d1-image.png

https://imgutil.s3.us-east-2.amazonaws.com/6a4fc8f3ec3b163ddf741b1e5b073310a803f179466133a375f40a0ed36e2bb1/d0ca88bf-b10e-49e2-be6e-af55dcb8dc67.png

Thu, Aug 15

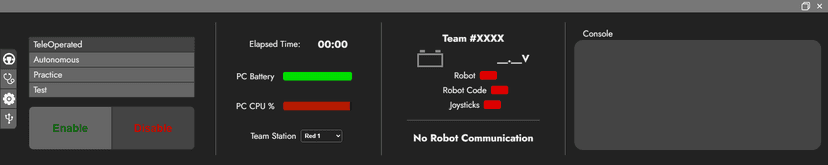

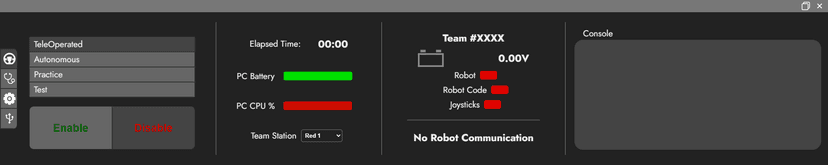

i'm working on WindUp: a cross-platform alternative to DriverStation for FRC! i'm using Tauri with Rust to ensure a responsive interface, and developing my own crate to communicate with the robot: driverstation. i finally got the basic interface working, and i'm really happy with how it's turning out! Repo here: github.com/commonkestrel/windup

https://scrapbook-into-the-redwoods.s3.amazonaws.com/8ed91e2f-ad8d-4b1a-b1c0-51e0b342516f-image.png

https://imgutil.s3.us-east-2.amazonaws.com/d73a4e57d8fda2a944b29b424d12c02ffdf8b77f589ec99b4fdb4465c1633289/074fa2fb-09fe-4735-92ab-a00b6ab9034c.png

Thu, Aug 1

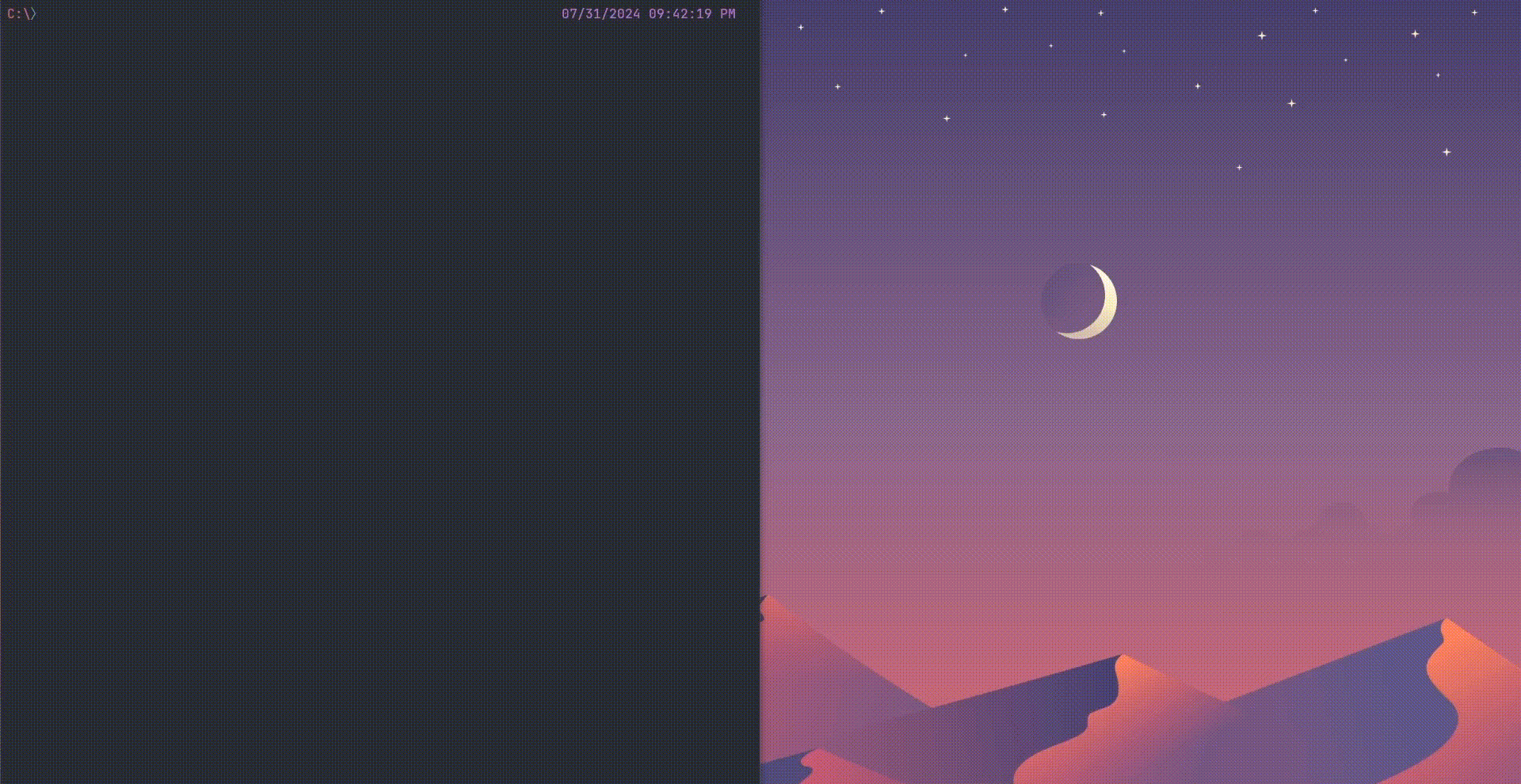

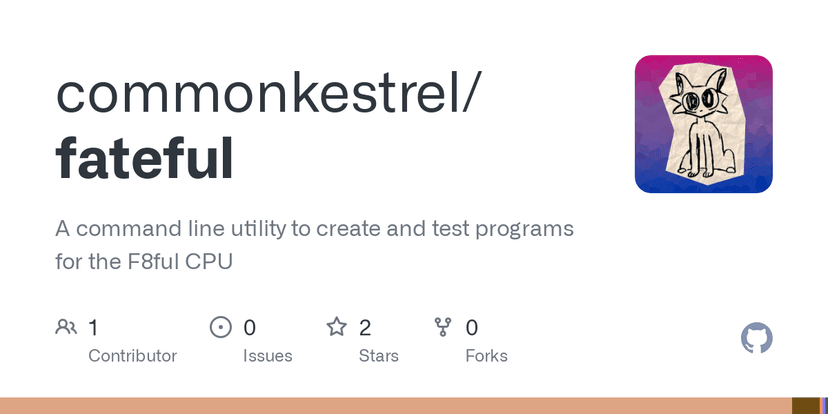

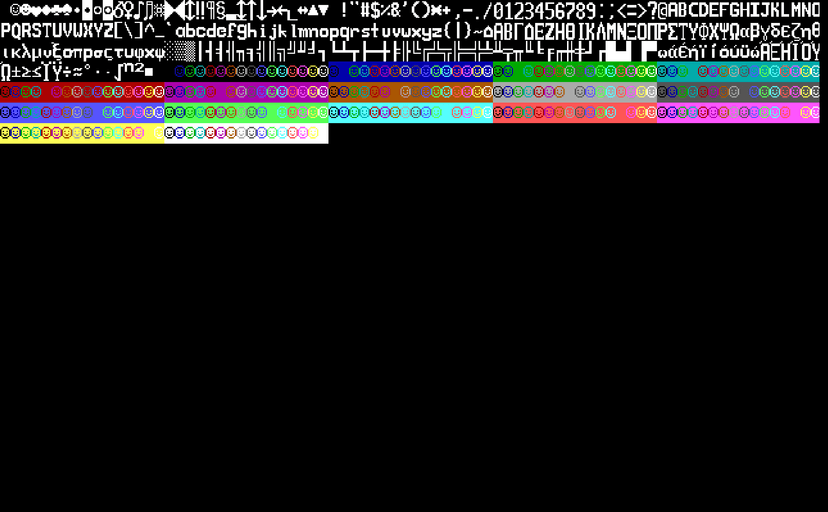

I finally finished documentation and color text for my assembler and CPU emulator: Fateful! I'm really proud of this project, since I've been working on it for over a year and a half. There are still a couple small tweaks, but that is just to documentation and packaging. Overall this project is finally complete! Repo here: github.com/commonkestrel/fateful

https://scrapbook-into-the-redwoods.s3.amazonaws.com/327846c4-3980-4a76-9543-ba061937d5cd-box.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/d0903cd6-d885-4d28-b7b8-044299678c62-screen.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/283b6257-1278-4a1a-8b90-5a6c09c3196a-demo.gif

https://imgutil.s3.us-east-2.amazonaws.com/a93c309518acea19cf18a8e1b26448b46ee1305dd989e0900c424ed1a3148af9/fa444491-165c-4904-9632-599751149798.png

Sun, Jul 21

I finally got around to documenting my assembly language - Fateful. I had already written documentation for the actual CPU architecture, but Fateful was a little complicated and I had never gotten around to explaining it. Now I just have to finish documentation for the emulator and tests! Repo is here: github.com/commonkestrel/fateful

https://imgutil.s3.us-east-2.amazonaws.com/a20ba7294bd4fb5537a825ba4c43e59b618ba730dcc0df82a5c76f5eecf10708/655e2955-d1f1-41af-ac26-95679b9b743a.png

Thu, Jul 18

I just finished my portfolio website! I don't do frontend development very much so this was a really fun project to work with. There may be a few small changes but overall nothing is broken and I am very happy with how it turned out. The live site can be found here at commonkestrel.github.io, and the repo can be found at github.com/commonkestrel/commonkestrel.github.io. #arcade

https://imgutil.s3.us-east-2.amazonaws.com/1075618ca33dd9e2eb087980e031324becc06c49fceb7549d23e36a83c8b04a2/ee2341c1-71c9-470a-bc95-48840f0bc167.png

Wed, Jul 17

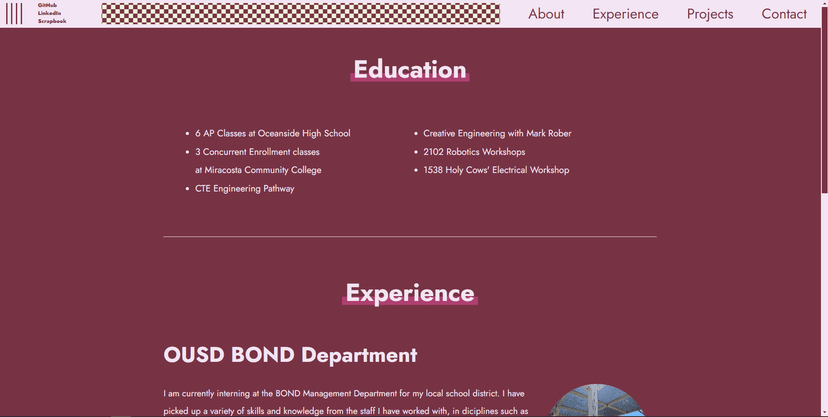

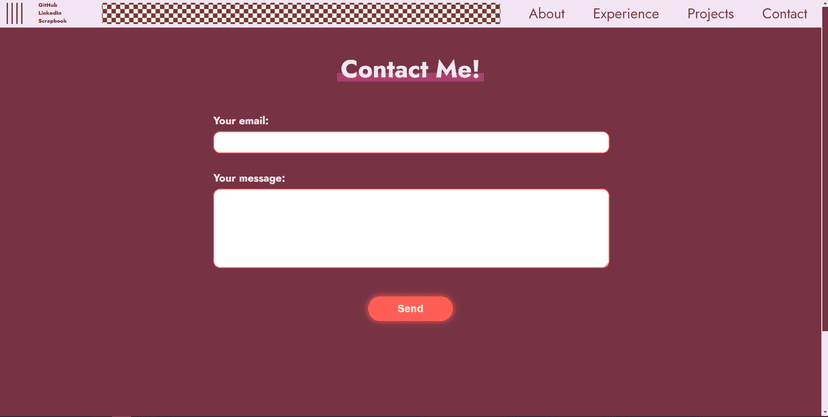

I finally got my portfolio site hosted on GitHub Pages! I also finished up my Experience and About Me pages, as well as adding a contact form! The site can be found at commonkestrel.github.io, and the repo can be found at github.com/commonkestrel/commonkestrel.github.io.

https://scrapbook-into-the-redwoods.s3.amazonaws.com/bde608b6-d815-4ff1-ac1a-122c471c96e2-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/5d4556e2-387b-47de-9957-dfb3acb5dda6-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b10c7fc5-f74a-4169-a744-708c2e4b8570-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/7e0adccb-fa0f-458a-87ff-8c68e49412f2-image.png

https://imgutil.s3.us-east-2.amazonaws.com/b256d3a7b92543faa0e4501ecda511b6904c9596c8fdde60da045af748238fda/a86b2885-4f97-4e61-a313-a562dd5af2cb.png

Sun, Jul 14

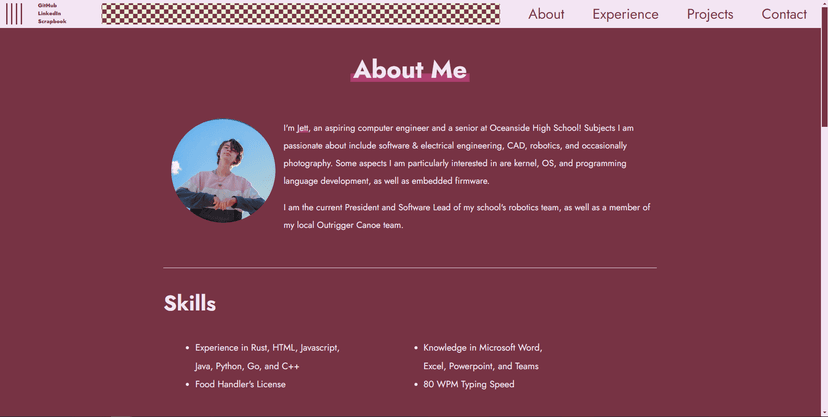

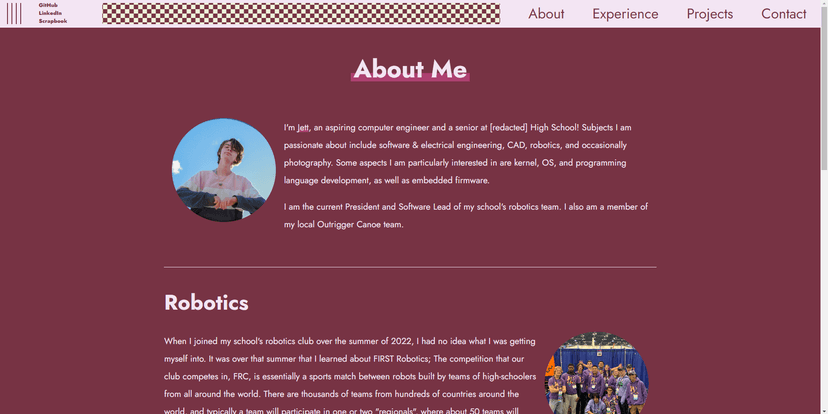

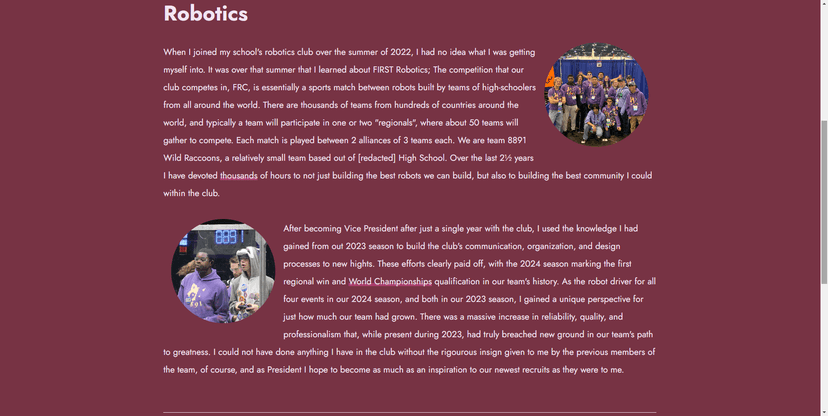

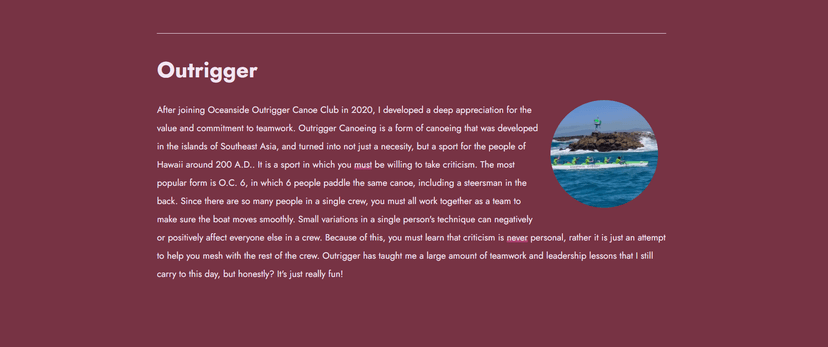

I made a bunch of small changes to my portfolio website and wrote up an "About Me" page! I'm really excited, since it seems like the homepage is fully functioning and it is very responsive on mobile as well. Now I just have to finish my "Experience" page and add a contact form. Repo is located at github.com/commonkestrel/portfolio. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/c6a90bf7-fd97-40b4-a6ea-a52937e825a7-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/56f6f1b7-6b7a-4a65-99e6-9526e825eb99-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/c57b60cc-54e5-4bbd-ba24-3e7a37742b51-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/eba3c6e7-1b0e-4621-9347-035d301dbf35-image.png

https://imgutil.s3.us-east-2.amazonaws.com/ffac14aebab3b1717859dd2c365c47f2edfa03df56da94439d42902e57cd0ded/d18694d7-d7b9-4ef3-aa62-3654f61e2752.png

Sat, Jul 13

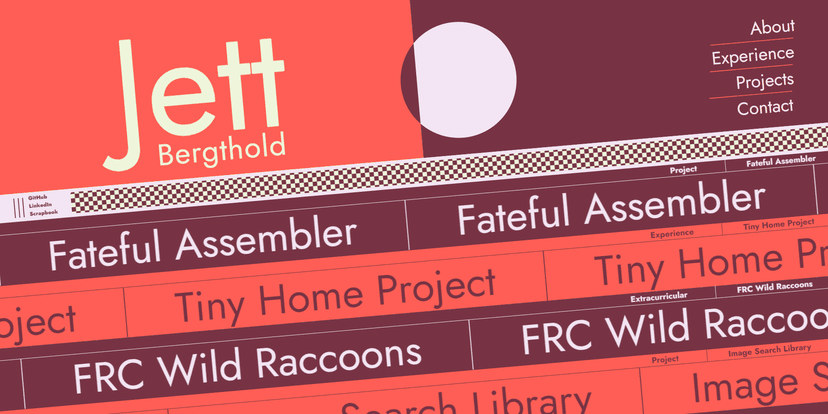

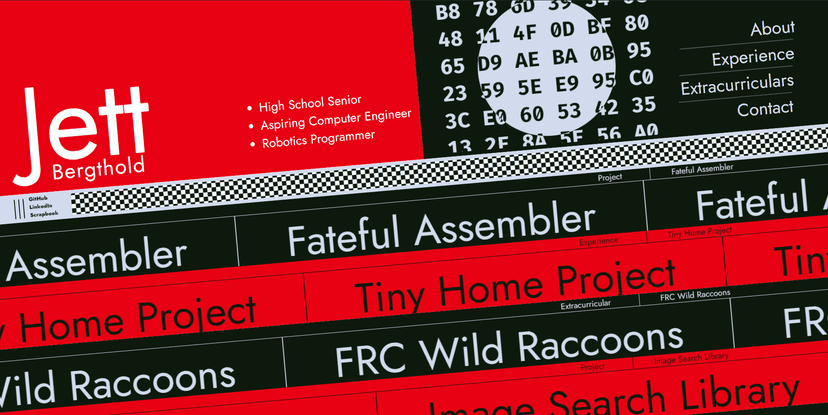

I got my entire frontpage for my portfolio website working! I'm super excited about it, I think it turned out super well! The repo is located at github.com/commonkestrel/portfolio. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/00a30de6-1301-49e2-a3d4-a52d6bab5bfb-image.png

https://imgutil.s3.us-east-2.amazonaws.com/150c97cf38d4f802b2ac7cec5b0eb93b39e4943e8876df1808e4957cae784023/ca835114-1e0e-496d-9658-3b143c210421.png

Thu, Jul 11

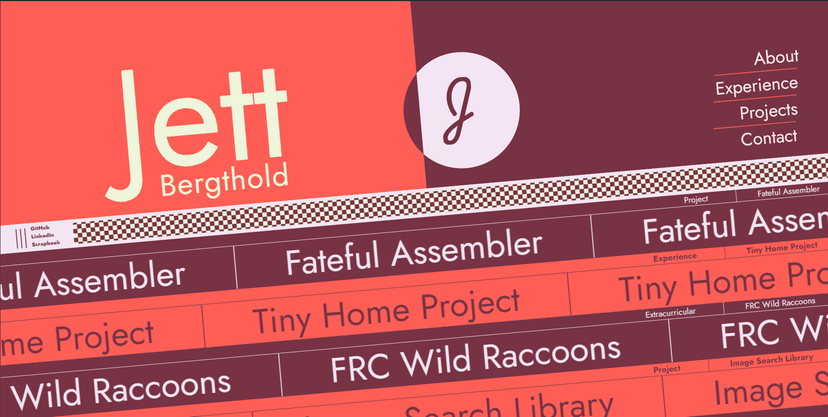

I finished the header for the front-page of my portfolio website! I'm really happy with how it turned out! I was heavily inspired by the design for gass.zone. Repo is at github.com/commonkestrel/portfolio

https://scrapbook-into-the-redwoods.s3.amazonaws.com/08eb8ce5-4007-4428-a4ba-d82b2d17f905-image.png

https://imgutil.s3.us-east-2.amazonaws.com/33ffc4ed0242ae262392e43b09ad233ca5772c1953a854801f91333cc76b5868/b31cae80-a01d-4c63-afaa-e42acf442d8f.png

Wed, Jul 10

It took me forever but I think I finally figured out how I want to resolve the hir of my programming language: Warp. I've been struggling to find how I want to resolve imports and paths, but I finally got it working! Now I can start resolving types and expressions, which is a huge milestone. The repo can be found here: github.com/commonkestrel/warp. #arcade

https://imgutil.s3.us-east-2.amazonaws.com/bc56a526ed29e287c138799b2f443da1d9125c379362a6fc8cf136da8594e5d0/a4d29862-331b-4e70-b279-4d609dac4851.png

Tue, Jul 9

I've managed to get the Abstract Syntax Tree (ast) in the Warp language compiling down to a High Intermediate Representation (hir). This will allow me to start resolving actual paths, functions, and libraries! Super excited for what comes next. The repo can be found here: github.com/commonkestrel/warp, along with the start of a standard library at github.com/commonkestrel/warp-std #arcade

https://imgutil.s3.us-east-2.amazonaws.com/bc56a526ed29e287c138799b2f443da1d9125c379362a6fc8cf136da8594e5d0/054b8a5e-8503-4604-8b27-7d67488cced9.png

Sat, Jul 6

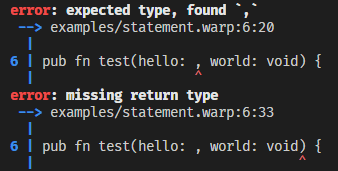

I finally finished parsing for my programming language: Warp! The Warp compiler can now read an input file, lex it, and parse the tokens into meaningful structures. The next steps will be namespace and package resolution. The repo can be found at github.com/commonkestrel/warp. #arcade P.S. i'm also very proud of the beautiful looking error messages:

https://scrapbook-into-the-redwoods.s3.amazonaws.com/5529e636-a6ac-43df-95d5-d5b5ad6bd332-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/08ef49f5-e73b-4da8-b80e-3e4e91c77e13-image.png

https://imgutil.s3.us-east-2.amazonaws.com/bc56a526ed29e287c138799b2f443da1d9125c379362a6fc8cf136da8594e5d0/0ec7215a-5dc8-41d6-9c0d-acf7234737e6.png

Thu, Jul 4

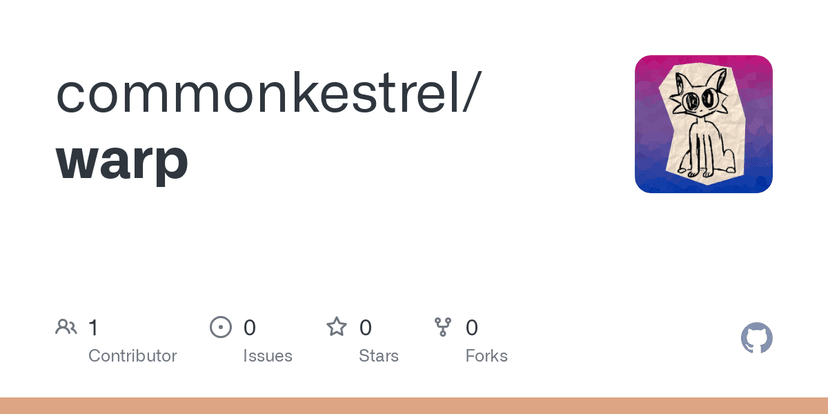

I got the lexer working for my programming language - Warp. The language is designed to compile to f8ful assembly, the assembly language for my homebrew 8-bit CPU. The repo is at github.com/commonkestrel/warp, and an overview can be found in the partially finished spec sheet, Spec.md.

https://imgutil.s3.us-east-2.amazonaws.com/a20ba7294bd4fb5537a825ba4c43e59b618ba730dcc0df82a5c76f5eecf10708/ef86caea-2af9-44bb-a815-78bca05c96c0.png

Wed, Jul 3

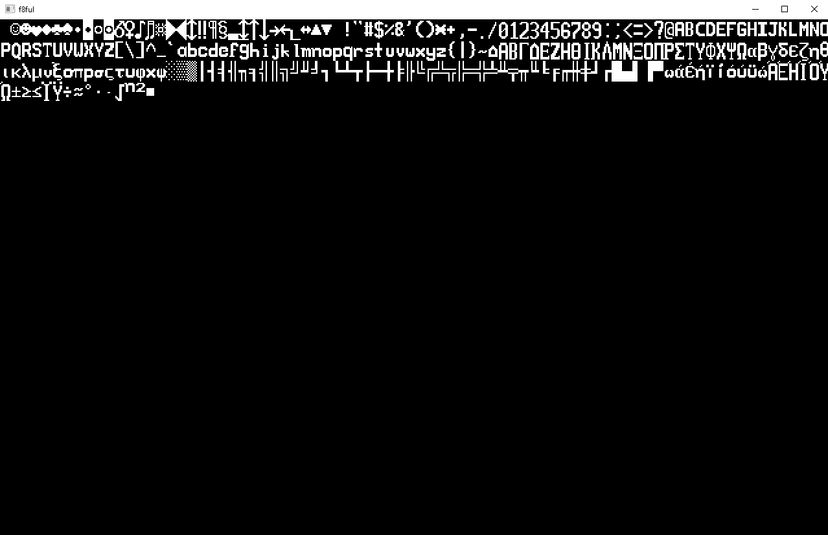

I've just finished adding VGA text-mode support to my 8-bit CPU emulator! I finished the emulator a while back, and after implementing it in Logisim, I decided I wanted to add some form of screen. I came across VGA text-mode, and settled on codepage 737 with 8x16 pixel characters to implement. It's just a 25x80 buffer mapped starting at 0xF800 in memory. The coloring isn't quite finished, but that will come in time. The repo is hosted at github.com/commonkestrel/fateful if you are interested. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/bd01768e-3afe-4d58-8a30-2c6cbd96248b-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/ca09cb61-a8e2-4175-8eb4-4a6908941665-image.png

https://imgutil.s3.us-east-2.amazonaws.com/a20ba7294bd4fb5537a825ba4c43e59b618ba730dcc0df82a5c76f5eecf10708/012a8059-3dde-41fb-a558-ef633584d0e9.png

Wed, Jul 3

I finally finished my font-creator! I think it might need a little better explanation on how to use it, but the core functionality works flawlessly! I have used it to implement a font to display VGA text mode codepage 737, which I think turned out wonderfully! The repo is stored at github.com/commonkestrel/pixel-font. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/79ee352d-441f-44e4-8956-71911c5d5ffc-image.png

https://imgutil.s3.us-east-2.amazonaws.com/92dd5e33d5014545474b20373a9922d28e8ac9f4a6a3b304491fe7d76c3102ee/cbfad9dc-6b45-421a-aa77-fbe3c2a972d0.png

Wed, Jun 26

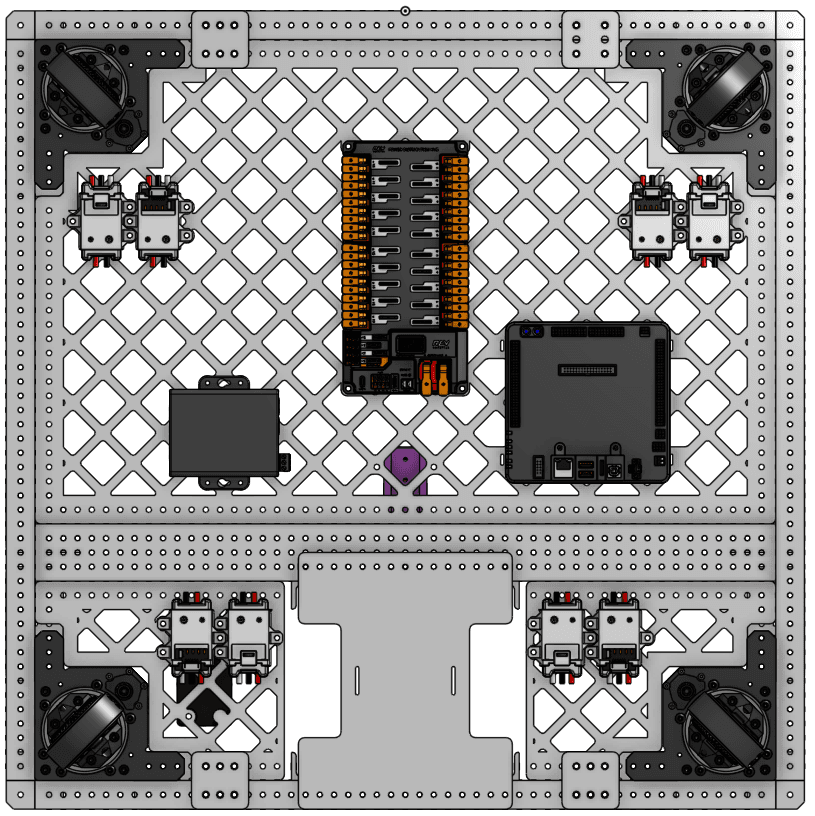

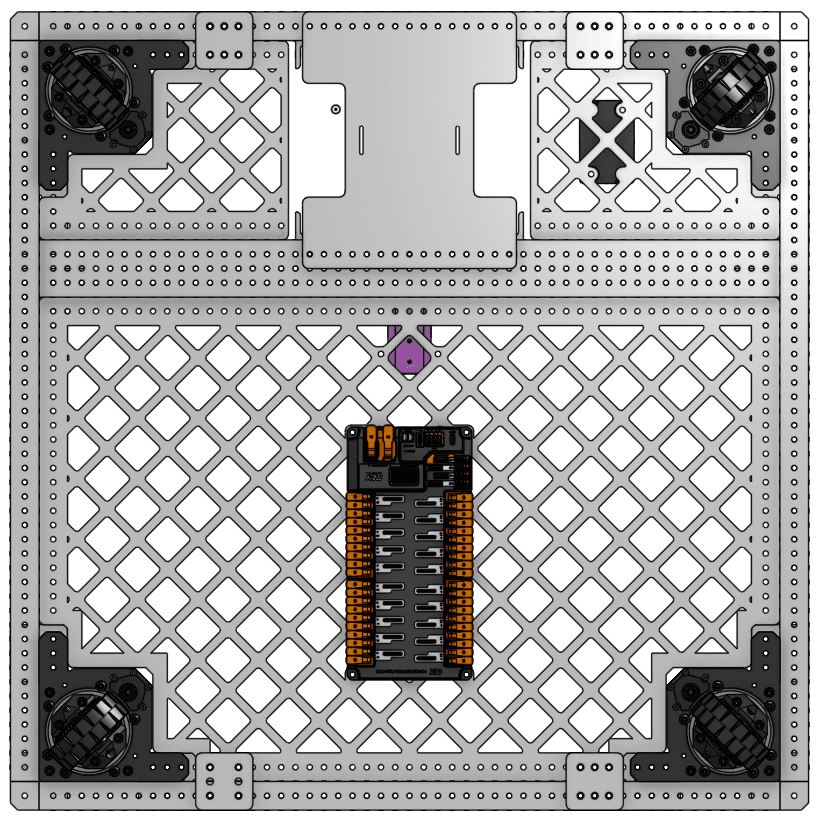

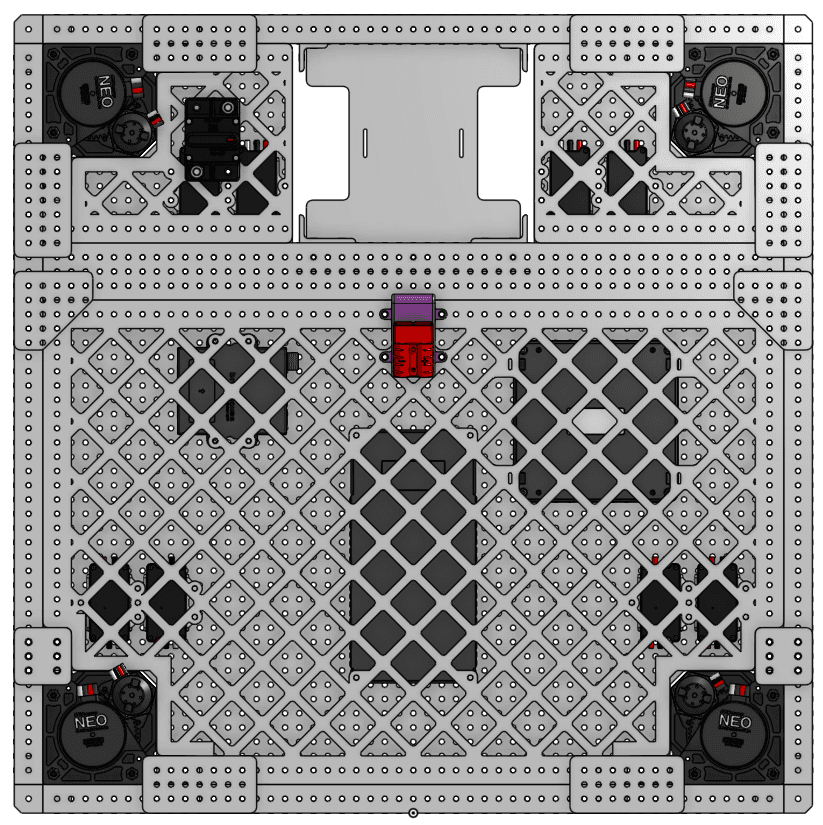

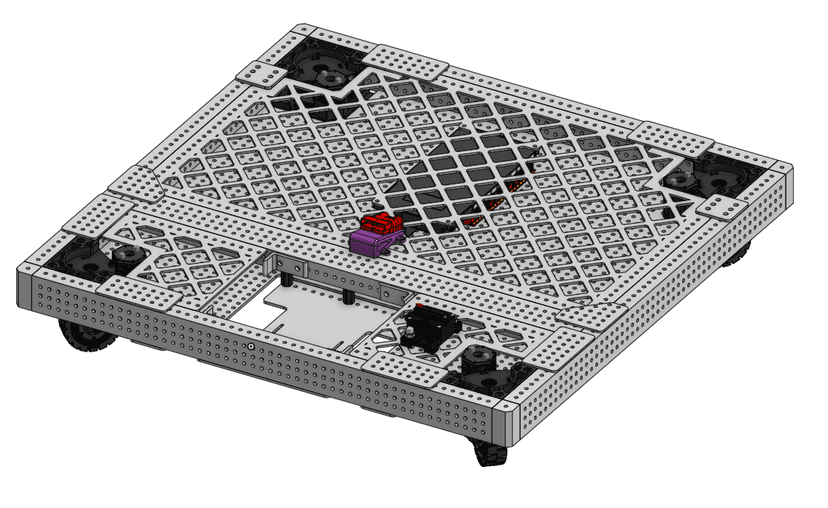

Milestone time! I recently finished our whole electrical layout for my team's robot base CAD. Hopefully we will use this base next year and beyond. The electrical layout includes holes and slots for screws and zipties for every permanent component, all of which are installed in the CAD. OnShape is here. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/5f4081d9-1fe9-4a45-90d5-bf8e6c220776-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/4eac7ce3-6ceb-4036-a634-2141c6eb8e51-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/ea15abfa-e7e2-4ac0-8b83-7513e661fc68-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/86669b2b-ca59-41e2-a5e6-9eef2101e109-image.png

Mon, Jun 24

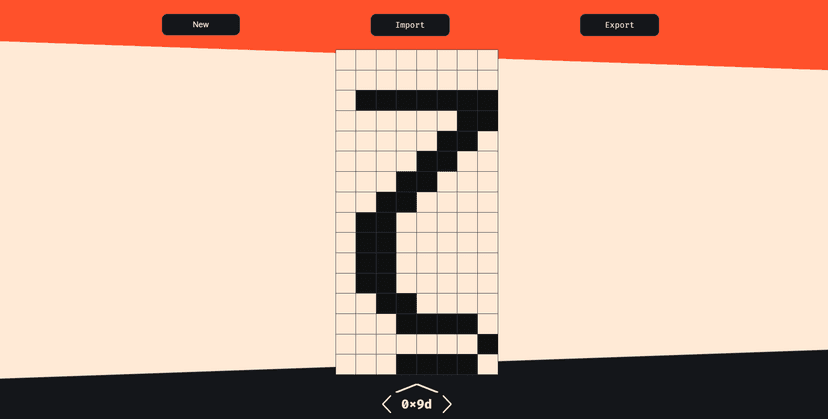

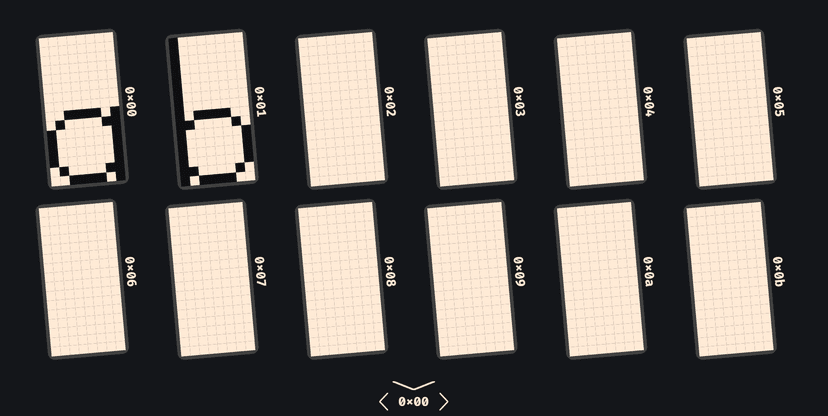

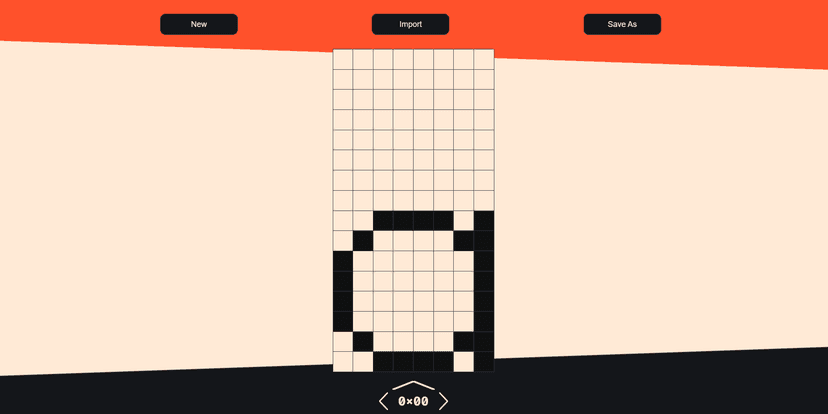

Today I finished the basic structure and functionality of my font generator website. I needed a pixilated font that could be uploaded to a ROM for my 8-bit CPU, but I couldn't find any good places to create or export one, so I decided to make my own. The exporting and importing I will have to do in WASM with Rust, since binary is just a lot easier to work with there, but most of the creation is done through TypeScript. Very excited to keep playing with this. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/2debd8a4-29a4-424a-aae8-f4c954f3eb61-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b08857ce-641d-4c41-839e-141c4f5bbe55-image.png

Sat, Jun 22

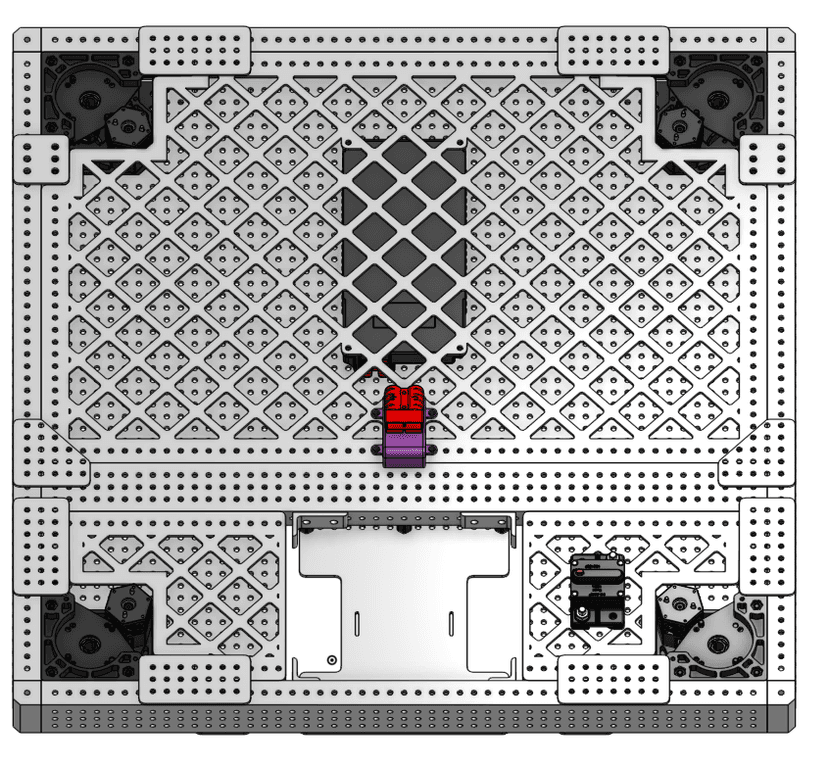

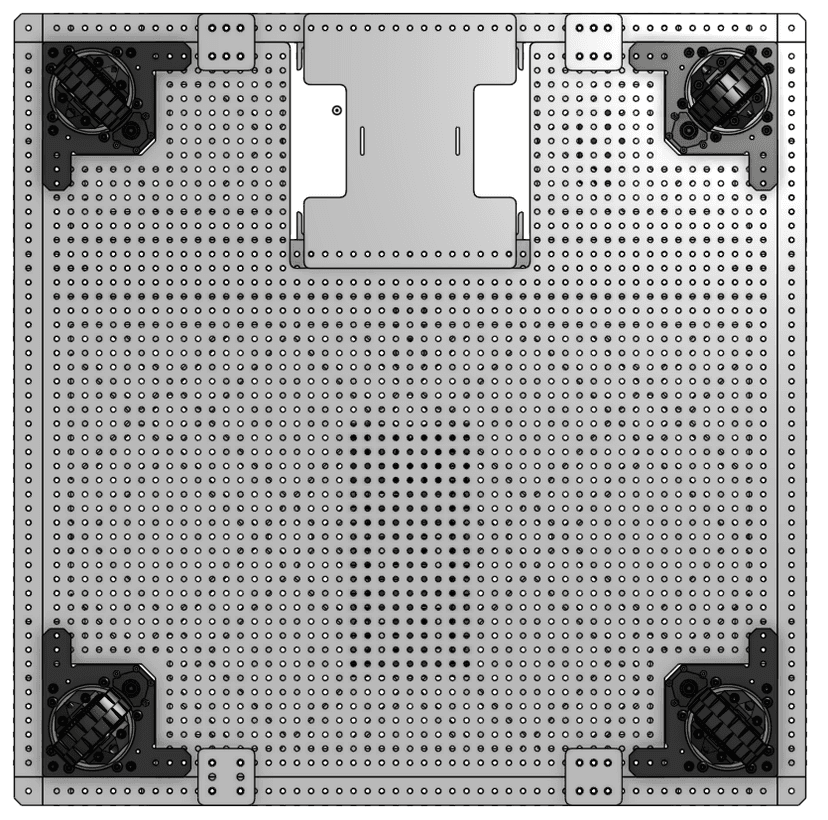

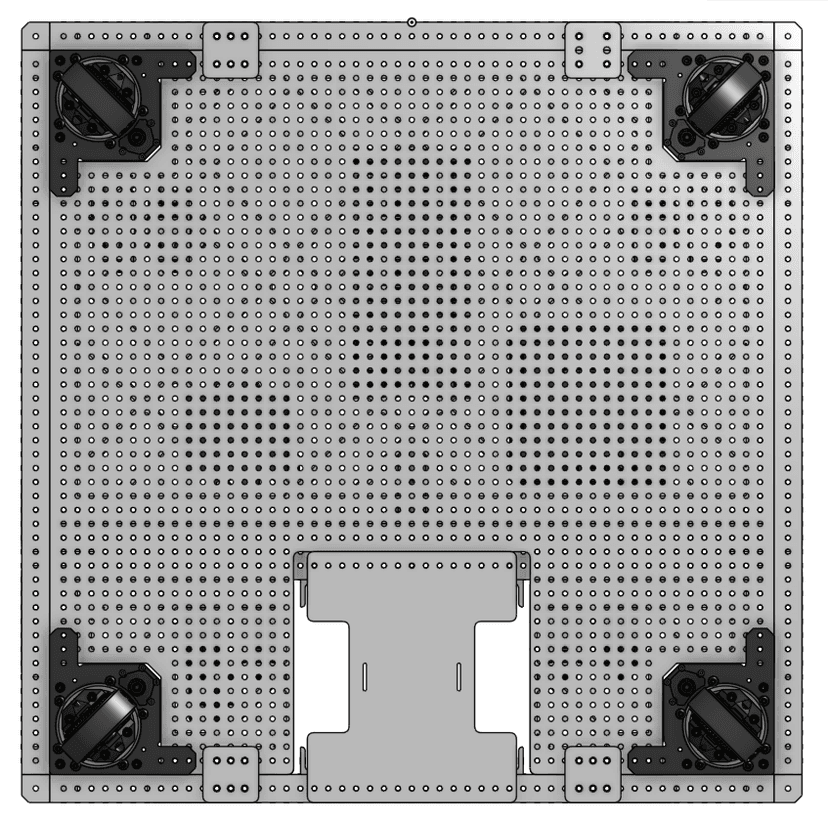

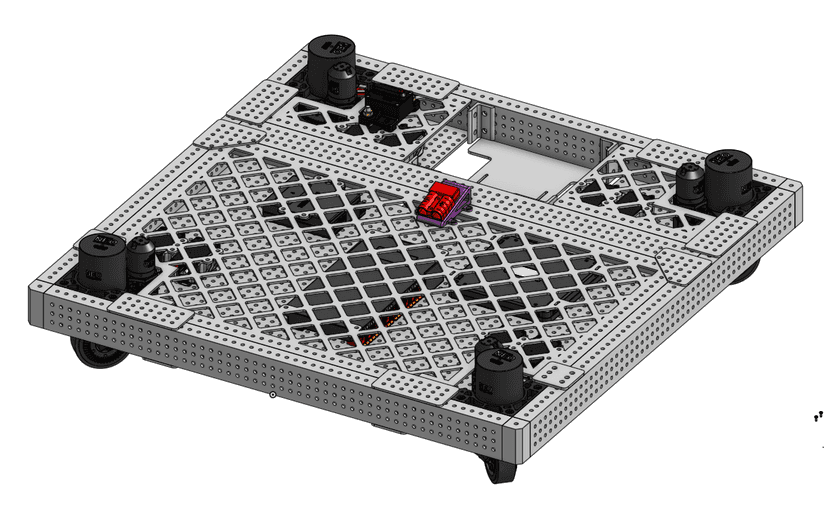

Just finished with a basic base for my team's 2025 FRC bot. We had a lot of issues this year with our battery and electrical systems, so I'm aiming to reduce those issues as much as possible. Definitely did not take aaaaaannnyy inspiration from 2102 or 1538. Lots more work to be done, but the base is nearly complete. Onshape can be found here. #arcade

https://scrapbook-into-the-redwoods.s3.amazonaws.com/88b7d7b3-d248-4622-8b90-35f051cd7359-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/7d8aa03d-27f2-4169-867d-323ab2b84a88-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/845de5e0-fb20-4b6c-bfc6-1b7462431587-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b3bc5e34-6ea8-4572-8a63-b5a839cbd09b-image.png
